Published in May 1988
Physician and Surgeon specializing in Dentistry. Periodontist.
Piazza Repubblica 4, 09129 Cagliari, Italy.
tel ++39 070 498159, fax ++39 070 400164
web site

From periodontology to prosthesis

Fig. 58. Casting of two gold cores.
Figs 59, 60. X-rays of 2.6 from two different angles after the operation, after endodontal treatment and rehabilitation with cores.

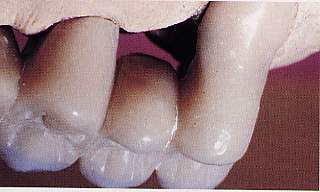

Figs 61, 62. A temporary, fixed, precision resin prosthesis is prepared.
Fig. 63. After all endodontal and gnathological problems of conservation of the upper arch have been dealt with, it is rehabilitated through prosthesis with cores.

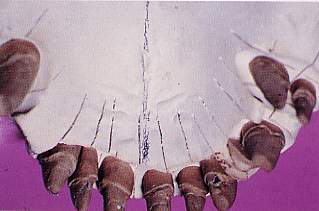

Fig. 64. Precision impressions of the upper arch are made and from these the master patterns are made.

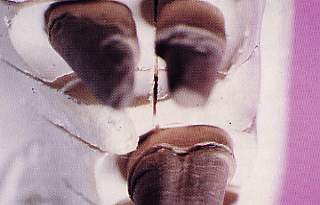

Fig. 65. Detail of patterns showing the accuracy of the prosthesic preparation of the residual roots of 2.6.

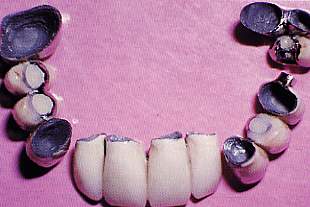

Fig. 66. The final gold-platinum-porcelain prosthesis is constructed in sectors (to facilitate the correction of any problems that may arise in future).

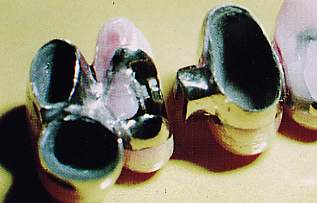

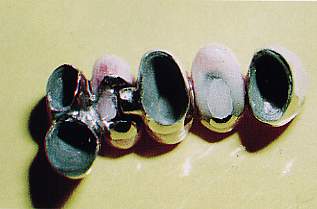

Figs 67, 68. Special care has been taken in the planning and construction of the upper right prosthesis at the level of the two residual roots of 2.6. In fact, a male intracoronal attachment has been installed in the crown element of the bridge mesial to 2.6. This fits into a female extracoronal attachment on 2.5. If in future it becomes necessary to extract the roots of 2.6 (especially the palatal root, which presents a barely-acceptable residual bone level), the prosthesis already has a precision attachment which can take a removable prosthesis with attachments.

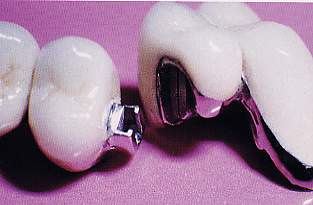

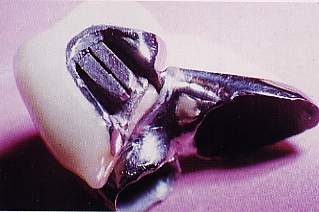

Fig. 69. Detail of the male intracoronal attachment.
Fig. 70. Detail of the female extracoronal attachment.
Fig. 71. The gold-platinum-porcelain prosthesis positioned in the mouth.


  1. CARNEVALE, O.; DI FEBO, G.; TREBBI, L.; BONFIGLIOLI, R.; "Il trattamento di pazienti con malattia parodontale grave", Attualità Dentale, 40-41, 15, 9, 1986
  2. LINDHE, J.; Parodontologia, cap. 20, 433-450, 1984
  3. KARRING, T.; NYMAN, S.; LINDHE, J.; "Healing following implantation of periodontitis affected roots into bone tissue", J. Cl. Period., 7, 96-105
  4. MAGNUSSON, I.; NYMAN, S.; KARRING, T.; ELGEBERG, J.; "Connective tissue attachment formation following exclusion of gingival connective tissue and epithelium during healing", J. of Period Research, 20, 201-208, 1985
  5. NYMAN, S.; KARRING, T.; LINDHE, J.; PLANTEN, S.; "Healing following implantation of periodontitis affected roots into gingival connective tissue", J. Cl. Period., 7, 394-400, 1980
  6. NYMAN. S.; "New attachment position based on the principle of guide tissue regeneration", in: Communication in 3rd SidP International Congress, Milano, 4-7 giugno, 1986
  7. OCHEMBEIN, C.; "Rapporti tra architettura ossea e gengivale", J. Cl. Period. , 15, 29, 1958
  8. PETTI, G.; "Piccolo Atlante di Parodontologia ", cap. V, 35-41 - cap. VIII 57-62 -cap. IX, 63-67, 1987
  9. PETTI, G.; "Dalla Parodontologia alla protesi. La riabilitazione orale completa", Il Dentista Moderno, 6, 1214-1238, 1987
  10. PETTI, G.; "Il trattamento dei difetti ossei nella chirurgia recettiva parodontale", Il Dentista Moderno, 3, 403-411, 1987
  11. PETTI, G.; "La riabilitazione completa di una emiarcata", Il Dentista Moderno, 6, 1239-1248, 1987
  12. PETTI, G.; "Le metodiche attuali per il trattamento chirurgico ricostruttivo dei difetti ossei", Il Dentista Moderno, 5, 817-832, 1986
  13. PETTI, G.; "Innesti con osso eterologo di Kiel per la correzione dei difetti parodontali", Dental Cadmos, 14, 93-105, 1986
  14. PETTI, G.; "Impianto di idrossiapatite microporosa con conservazione della papilla a protezione della zona ricevente", Il Dentista Moderno, 4, 667-677, 1986
  15. STAFFILENO, H. J.; "Il trattamento chirurgico delle lesioni interadicolari", Cl. Odont. del N. Amer - Terapia Parod., V2, 3, 622-637, 1970
  16. WAERHAUG, L.; "The furcation problem. Etiology, pathogenesis, diagnosis, therapy and prognosis", J. Cl. Period., 7, 73-95, 1980
